How Canada's electrical and fire codes shape a home kiln install

What to take away

Why CSA C22.1 treats a kiln as a continuous-load appliance, not a dryer

The Canadian Electrical Code (CSA C22.1) is the model code that provincial and territorial electrical regulations adopt, sometimes with amendments. It separates loads that run for long stretches from those that cycle on and off. A kiln sits in the first group.

A dryer or range draws heavily for a short time and then stops. A glaze firing can hold a resistive element at full draw for hours. That difference drives the whole design of the circuit: conductor ampacity, overcurrent protection and termination temperature ratings all assume the load will not let up.

In code language the kiln is a continuous load, and the wiring must be sized so the conductors and the overcurrent device carry that load without running at their limit. An electrician who sizes a kiln circuit like a dryer circuit will undersize it.

In practice the kiln's steady draw is held to no more than 80 percent of the circuit rating, which is the same as sizing the circuit at 125 percent of the nameplate current.

This is also why kilns rarely share a circuit. A dedicated branch circuit from the panel to the kiln is the normal arrangement, and it is what most manufacturers' instructions call for.

Electricity is provincially regulated, and the federally regulated industry sectors page applies only if you later incorporate or sell pottery across borders.

One practical consequence: the kiln's duty cycle is not a detail you can round off. If you plan to fire often, tell the electrician. A circuit sized for occasional use may not suit a production schedule.

Anyone comparing kiln models should also read how CSA-approved kiln ratings differ before buying.

What CSA Group certification on a kiln nameplate actually proves

CSA Group is a certification body, not a government department. A kiln bearing its mark has been tested against the applicable standard for electrical safety and found to meet it. The mark is the evidence an inspector relies on.

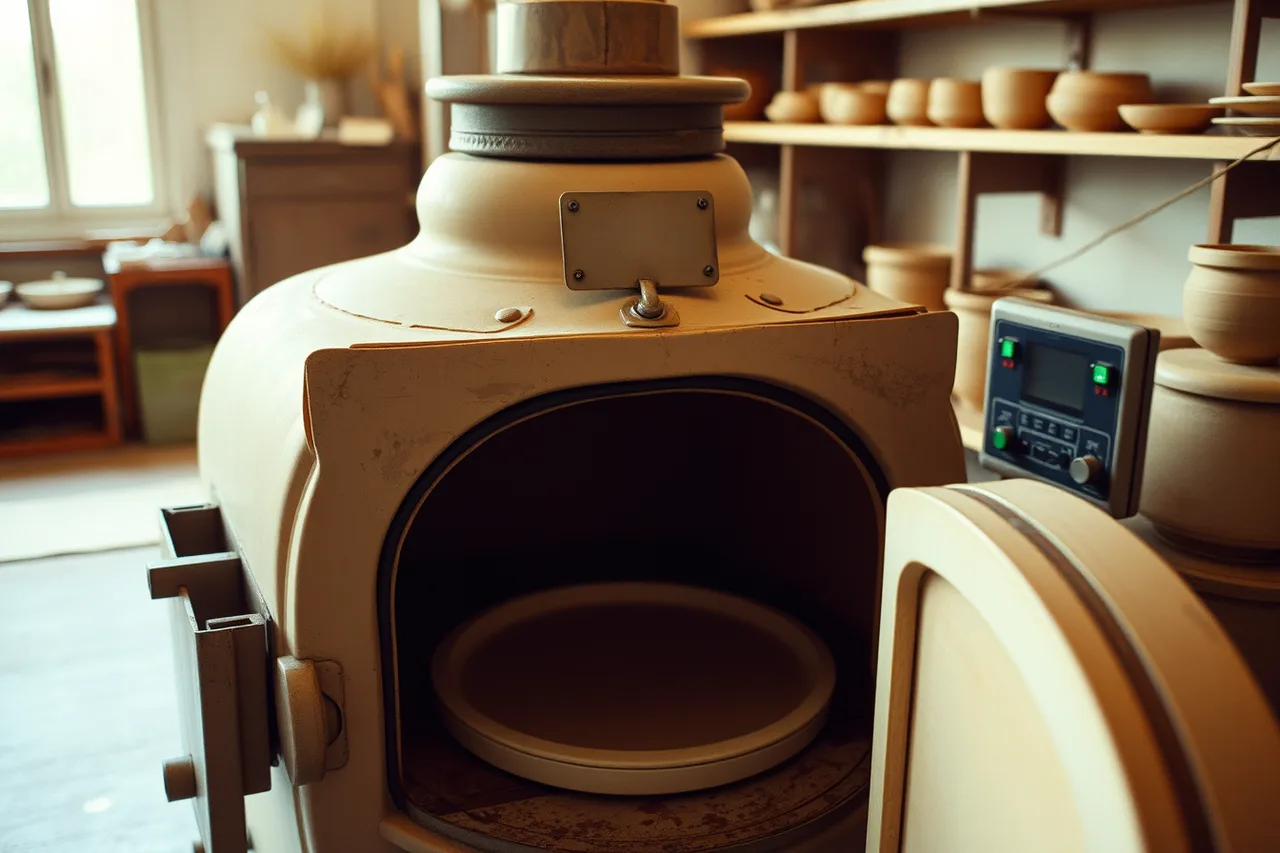

The nameplate carries the model, voltage, amperage or wattage, phase and the certification mark. Photograph it before the electrician arrives, and bring the manual.

Certification covers the kiln as built. It does not cover a field modification: a replaced element, a bypassed limit switch, a home-made controller. An inspector can refuse a kiln that has been altered from its certified configuration.

Imported kilns are a common sticking point. A unit sold online without a recognized certification mark for Canada may need field evaluation, which costs money and time. Some inspectors will not accept it at all.

If you are buying used, ask for the nameplate photo and the manual before you pay. A kiln with no visible mark and no documentation is a risk you carry through the permit process.

Certification also ties into the manufacturer's installation instructions, which the code treats as part of the requirements. Clearances, cord and plug type, and ventilation needs come from that document.

Sizing the kiln circuit: breaker, conductor and receptacle expectations

The starting point is the nameplate. A kiln rated at a given wattage and voltage produces an amperage figure, and the circuit is built around that with the continuous-load margin applied. The electrician, not the potter, does the final calculation.

Breaker size follows the calculated load and the manufacturer's maximum overcurrent protection. Installing a larger breaker than the kiln allows is a fire risk, not a safety margin.

Worked example at 120V. Divide watts by volts to get amps. A 1,440W kiln draws 12A, so it needs a 15A breaker, 14 AWG copper and a NEMA 5-15 receptacle. A 1,920W kiln draws 16A, so it needs a 20A breaker, 12 AWG copper and a NEMA 5-20 receptacle. These figures assume copper and a short run.

Worked example at 240V single phase. A 5,760W kiln draws 24A, so it needs a 30A breaker, 10 AWG copper and a NEMA 6-30 receptacle or a hardwired connection.

A 9,600W kiln draws 40A, so it needs a 50A breaker and 8 AWG copper where terminations are rated 75°C. An 11,520W kiln draws 48A, so it needs a 60A breaker and 6 AWG copper. Most kilns at that size are hardwired.

Breakers and fuses come in standard sizes: 15, 20, 30, 40, 50, 60, 70, 80, 90 and 100A. The kiln's marked maximum overcurrent protection caps the choice.

Three-phase kilns are rated per phase, so a 208V three-phase model draws less current per leg than the same wattage on 240V single phase. Homes rarely have three-phase service, and adding it means calling the utility.

The table below shows how the main circuit choices map to typical kiln classes. Treat it as orientation.

Conductor size is set by the calculated load and the termination temperature rating, not by what fits the breaker terminal. Aluminium versus copper, run length and derating for ambient temperature all enter the calculation.

Receptacle and plug type must match the kiln's cord. Some kilns are hardwired, and the manufacturer's instructions will say so. A mismatch here is one of the 120V vs 240V circuits issues that shows up late in an install.

Run length matters more than people expect. A long run from the panel to a garage or basement corner can push voltage drop up and force a larger conductor. Typical practice aims for no more than 3 percent voltage drop on the branch circuit.

Before quoting, the electrician needs the panel's spare capacity. A 100A service with electric heat and a range may not have room for a kiln without an upgrade, and that changes the budget entirely. A 60A kiln circuit on that service is the case that usually forces a 200A upgrade.

Ventilation and siting rules provincial fire codes apply to garages and basements

Provincial and territorial fire codes adopt the National Fire Code of Canada with local amendments, and they govern how a kiln is installed and where. The details differ by province, so confirm with your local authority having jurisdiction.

Garage kiln siting raises two issues: combustible storage and vehicle fuel vapours. A garage used for parking introduces a vapour source near an ignition source, and fire codes treat that seriously. Clearances to combustibles come from the manufacturer and the code.

Basement kiln siting is usually about headroom, access and ventilation. A basement corner with a low ceiling and no outside air path is a poor location regardless of what the code allows.

Ventilation is the part hobby potters underestimate. Firing glazes and clays releases fumes, and the code and manufacturer's instructions address how those are removed. A downdraft vent or an exhaust path to outside is common.

Dust is a separate concern. Clay dust in a shared or rented space brings workplace-style duties into view, and the Ontario OHS guide is a useful reference for what ventilation and dust control look like in practice.

For a broader picture of how safety duties are framed across Canadian jurisdictions, the CCOHS acts and regulations collection is a good starting point.

The National Fire Code of Canada has clearance tables for solid-fuel appliances, not for kilns. A kiln is enforced through its listing and the manufacturer's installation instructions, so the manual's numbers are the ones that get measured.

Typical manual figures are 12 in (300 mm) of clearance to combustibles on the sides and back. Above the lid, 18 in to 24 in (450 mm to 600 mm) is common where the ceiling is combustible. These are typical ranges; the figure for your model governs, and an inspector will measure it.

Most manuals also require the kiln to sit on its listed stand or on a noncombustible floor, not directly on a combustible surface. Keep shelves, boxes and paper outside the clearance zone.

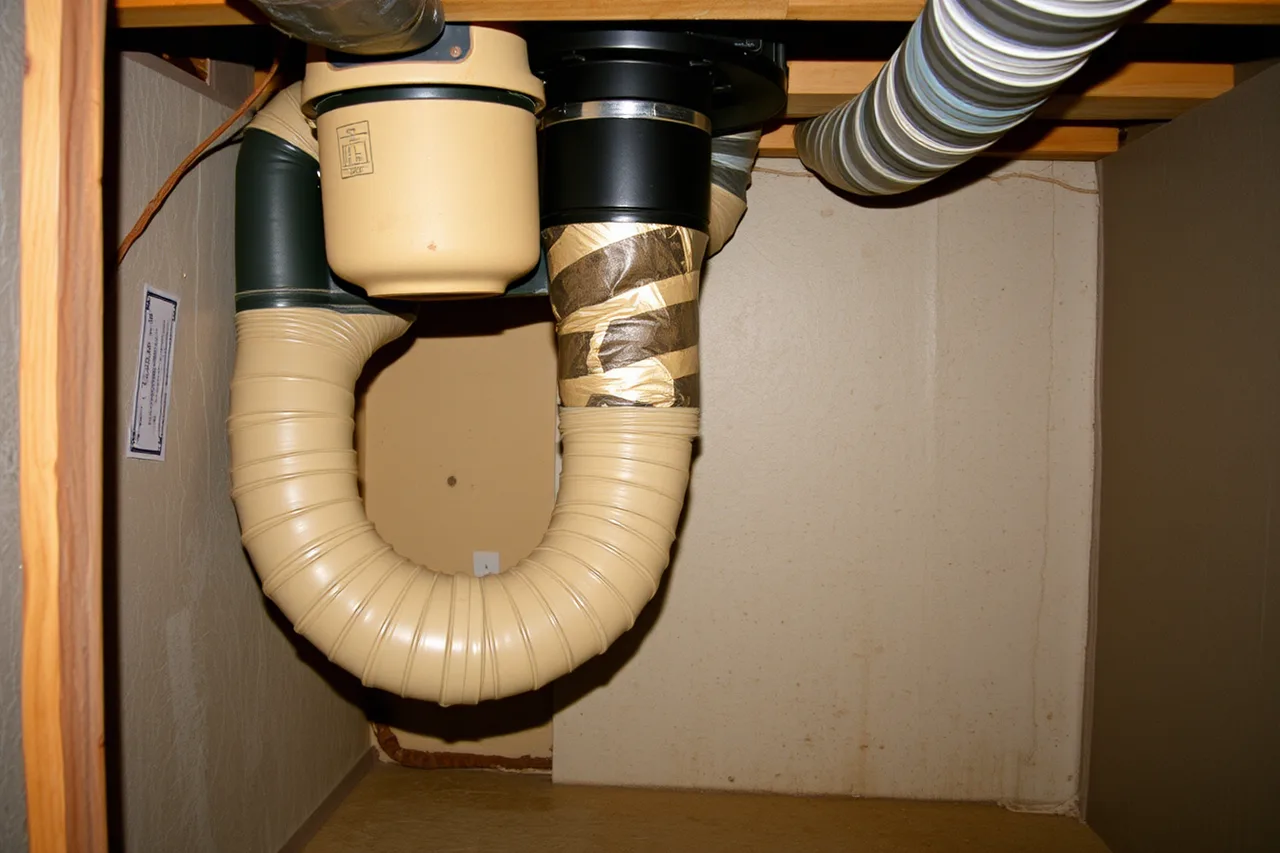

A ducted downdraft vent for a hobby kiln typically moves about 100 to 200 CFM through a 3 in or 4 in metal duct. Keep the run short, with few elbows, and discharge outside where exhaust cannot re-enter a window, door or fresh-air intake, usually at least 3 ft (900 mm) away.

If the manual allows the kiln to vent into the room, the airflow needed depends on the kiln's size, the firing temperature, the glaze chemistry and the room volume. Get that number from a ventilation calculation or the kiln maker, not from a forum thread.

Clearances to walls, shelves and anything combustible should be measured, not eyeballed. Kiln manufacturers publish minimum distances, and inspectors check them.

Fire code adoption and electrical permitting both happen close to home. The table below lists what five provinces publish; editions change, so check the current one before you build.

What an electrician will ask before quoting a home kiln setup

A good electrician will not quote from a photo of the kiln alone. Expect a short list of questions, and have the answers ready to avoid a second visit.

Answers change the quote. A basement install near the panel with spare capacity is a straightforward job. A detached garage with a long run, a subpanel and a service upgrade is not.

The electrician will also ask whether the kiln is new or used, and whether it has been modified. A used kiln with a replaced element may need the manufacturer's confirmation that the change is allowed.

Permits come up early. Most jurisdictions require an electrical permit for a new kiln circuit, and the electrician typically pulls it. Skipping the permit saves money until you sell the house or file a claim.

Expect a residential permit for one new circuit to cost roughly $100 to $300, with the inspection usually booked within a few business days to three weeks. Those are typical ranges; each authority publishes its own fee schedule and service standard.

If you are still choosing equipment, the wider home kiln setup planning list is worth reading before you commit to a location, because siting drives the electrical cost.

Ask for the quote in writing with the permit and inspection included. Verbal estimates that exclude the permit are the ones that grow.

What a municipal inspector looks for at final sign-off

The inspector is checking the work against the permit, the code and the manufacturer's instructions. The visit is usually short, and the failures are usually avoidable.

Typical items on the final checklist:

Missing documentation is the most common delay. Keep the manual, the nameplate photo and the electrician's load calculation together, because the inspector may ask for any of them.

A kiln that has been field-modified can fail on the spot. If you bought used and the previous owner changed the wiring, sort that out before the inspection, not during it.

If the kiln sits in a garage or basement, the inspector may also check that the siting matches the fire-code clearances and that nothing combustible is stored against the unit.

Permit and inspection requirements vary by municipality, so confirm the local process rather than assuming. The permits, licences and regulations landing page is a reasonable place to start mapping what approvals apply to a small studio.

Documenting the install for insurance and resale

That file does two jobs. It supports an insurance claim if something goes wrong, and it answers buyer questions when you sell. An unpermitted kiln circuit is a defect a home inspector will flag.

Record the ventilation setup too, with photos of the vent path and the clearances as installed. If you later move the kiln, the documentation starts over.

If you need the authoritative text of a federal act, the Justice Laws Website has it.

Finally, review the install once a year. Elements age, cords fray and clearances get eaten by stored boxes. A five-minute check keeps the paperwork honest.

Reading up on the kiln rules that working studios publish is a good way to catch the small things that cause big problems later. The home kiln setup mistakes that show up in forum threads usually trace back to one of them.

Common questions
